FNIRSI SFD-02 4-in-1 Touchscreen Air Quality Detector

Manufacturer part numberVLTSTK0050

FNIRSI SFD-02 4-in-1 touchscreen air quality detector for HCHO, TVOC, humidity and AQI. 2.4-inch display, 1000 mAh battery. SKU VLTSTK0050.

Incl. VATTRY 2,902.58
Unit price · Excl. VATTRY 2,418.82
SKU
VLTSTK0050
MOQ
1 pcs
Package / Case
—
Secure payment infrastructure3D Secure protected paymentOperational dispatchSame-day processing priority for stock itemsTechnical sales supportExpert pre-sales product and order support
Delivery planningSame-day processing priority for stock items

In-stock products are usually processed the same day. Preparation for some products may take up to 3 days. Carrier transit time is additional.

Return termsReturn request within 14 days

Accepted return requests are completed after product inspection in accordance with the applicable regulations and sales terms.

Product and technical information

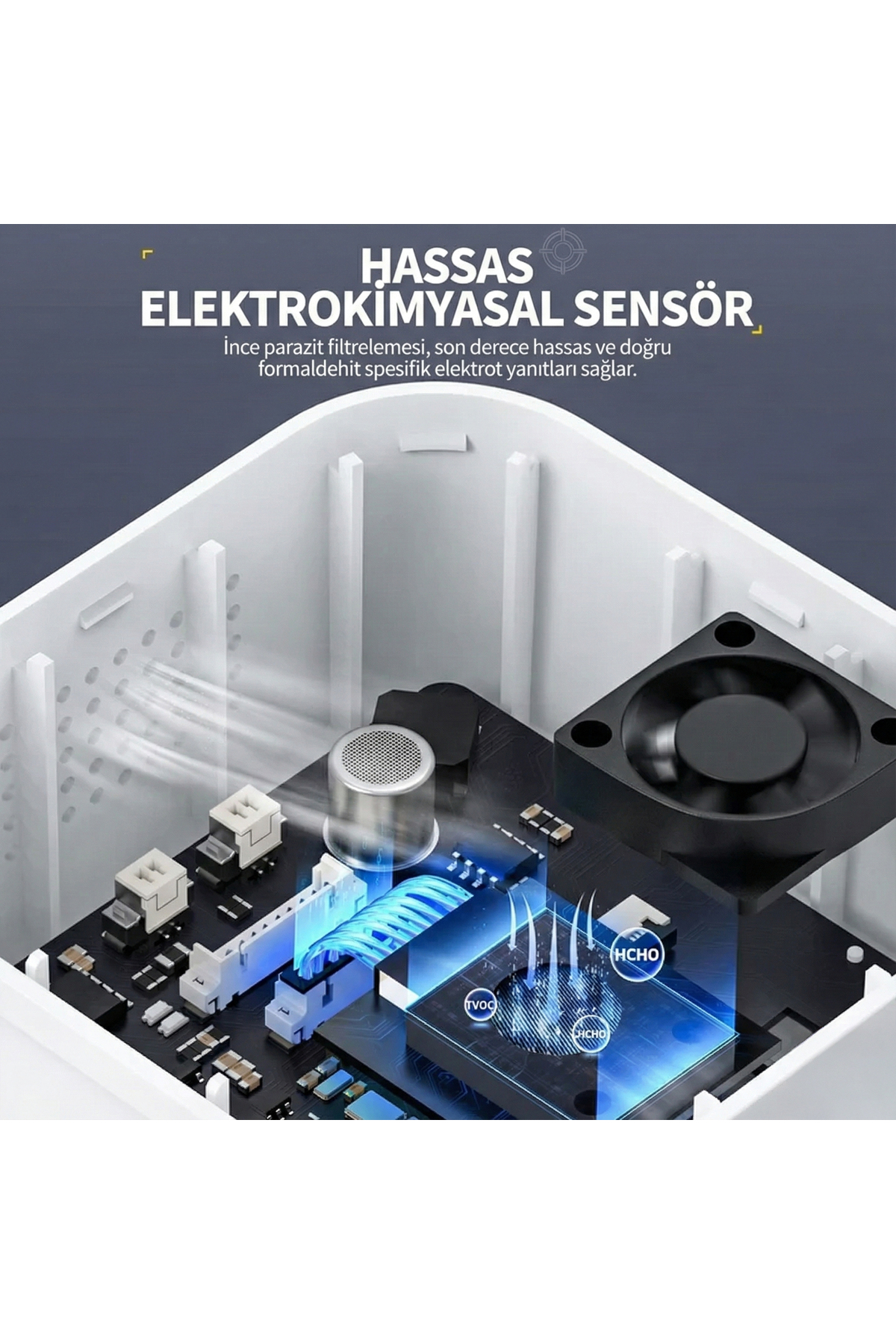

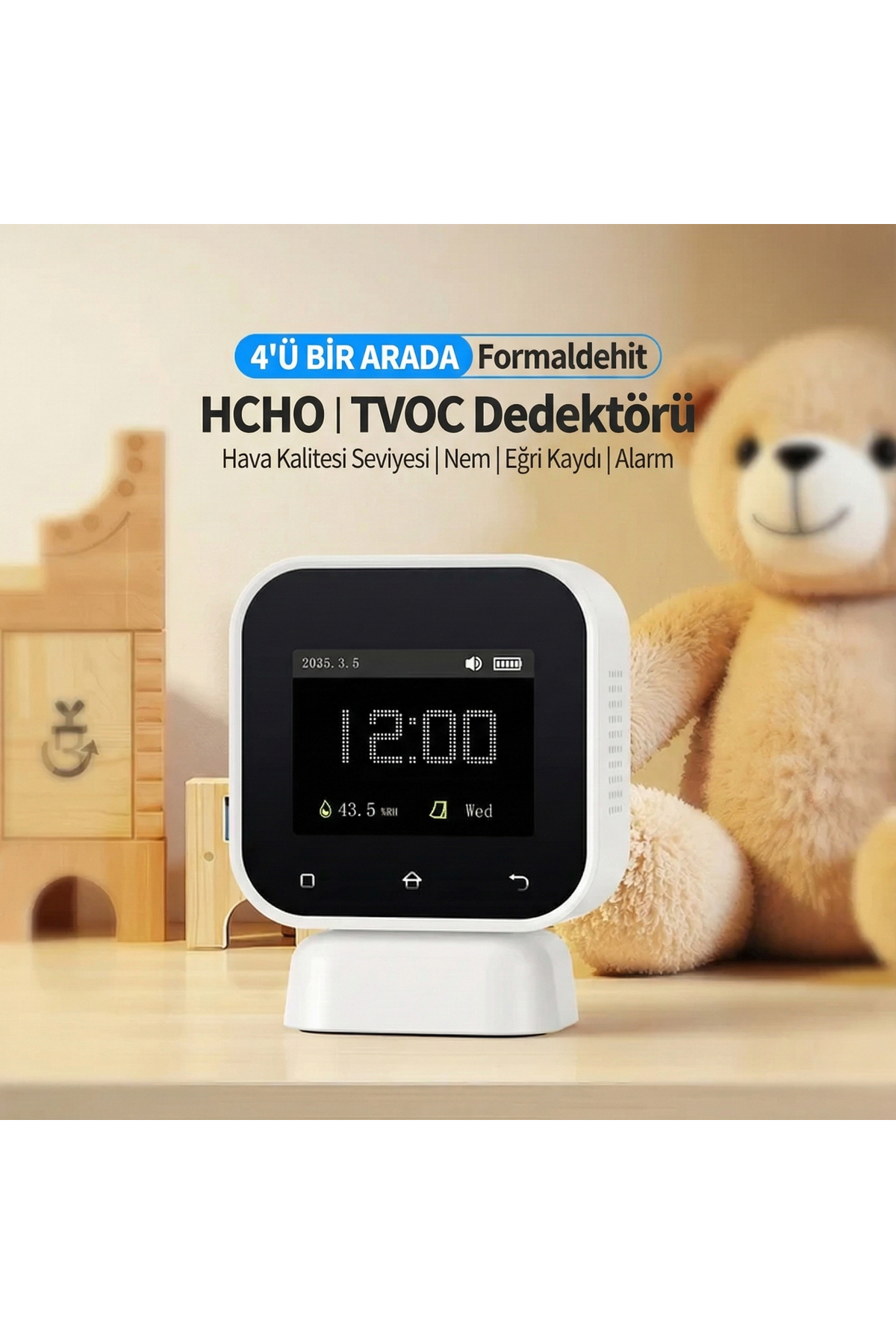

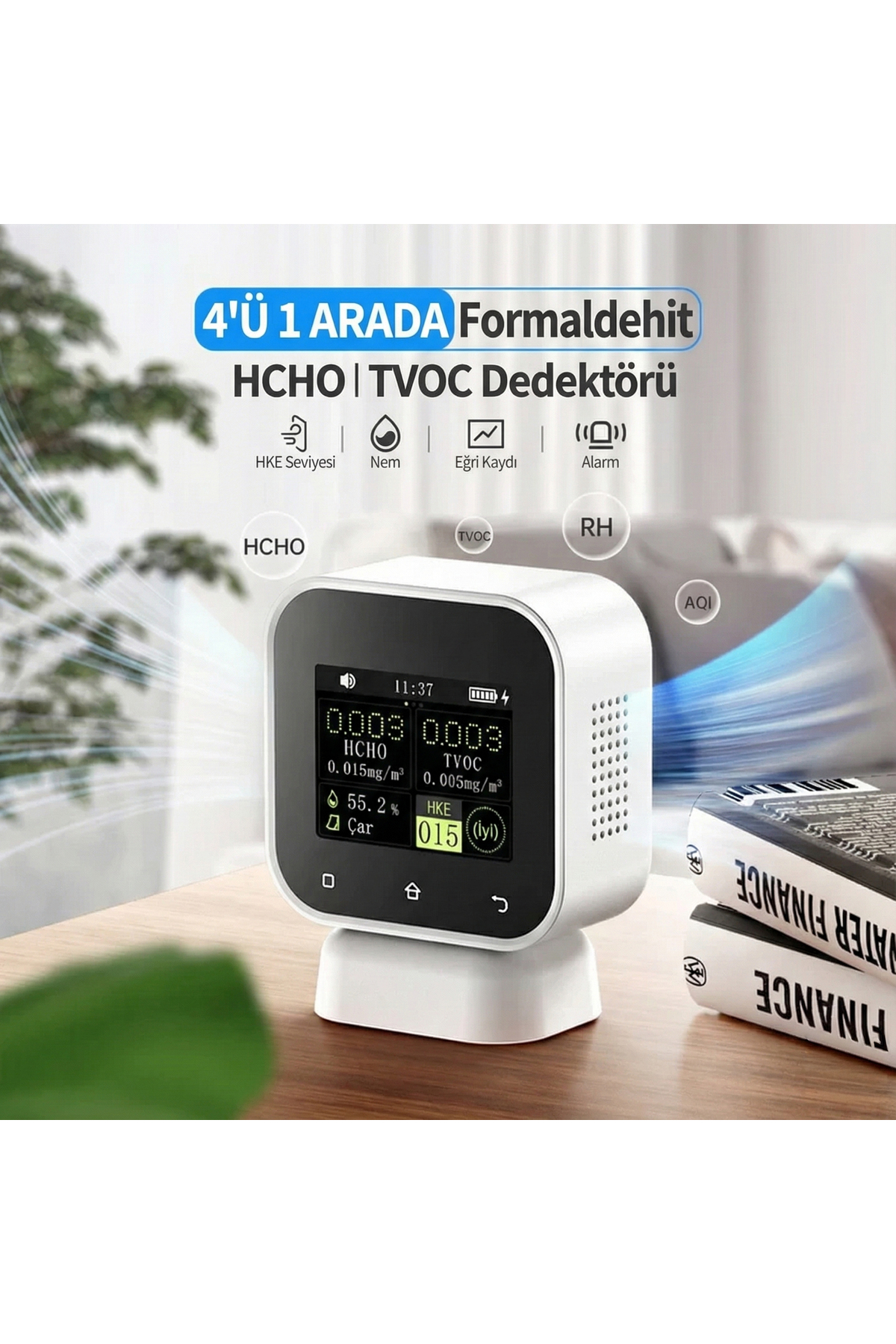

The FNIRSI SFD-02 is a touchscreen indoor air quality detector designed to monitor formaldehyde (HCHO) and TVOC levels in real time, along with humidity, time/date and AQI (air quality index). It uses an electrochemical HCHO sensor (0-2000 PPM, 5 s preheat) and a semiconductor TVOC sensor (0-10 mg/m³, 120 s preheat). HCHO levels are classified in five grades: Excellent (0-0.08 mg/m³), Good (0.08-0.1 mg/m³), Mild (0.1-0.2 mg/m³), Moderate (0.2-0.3 mg/m³), Severe (0.3 mg/m³ or above). It

Key features

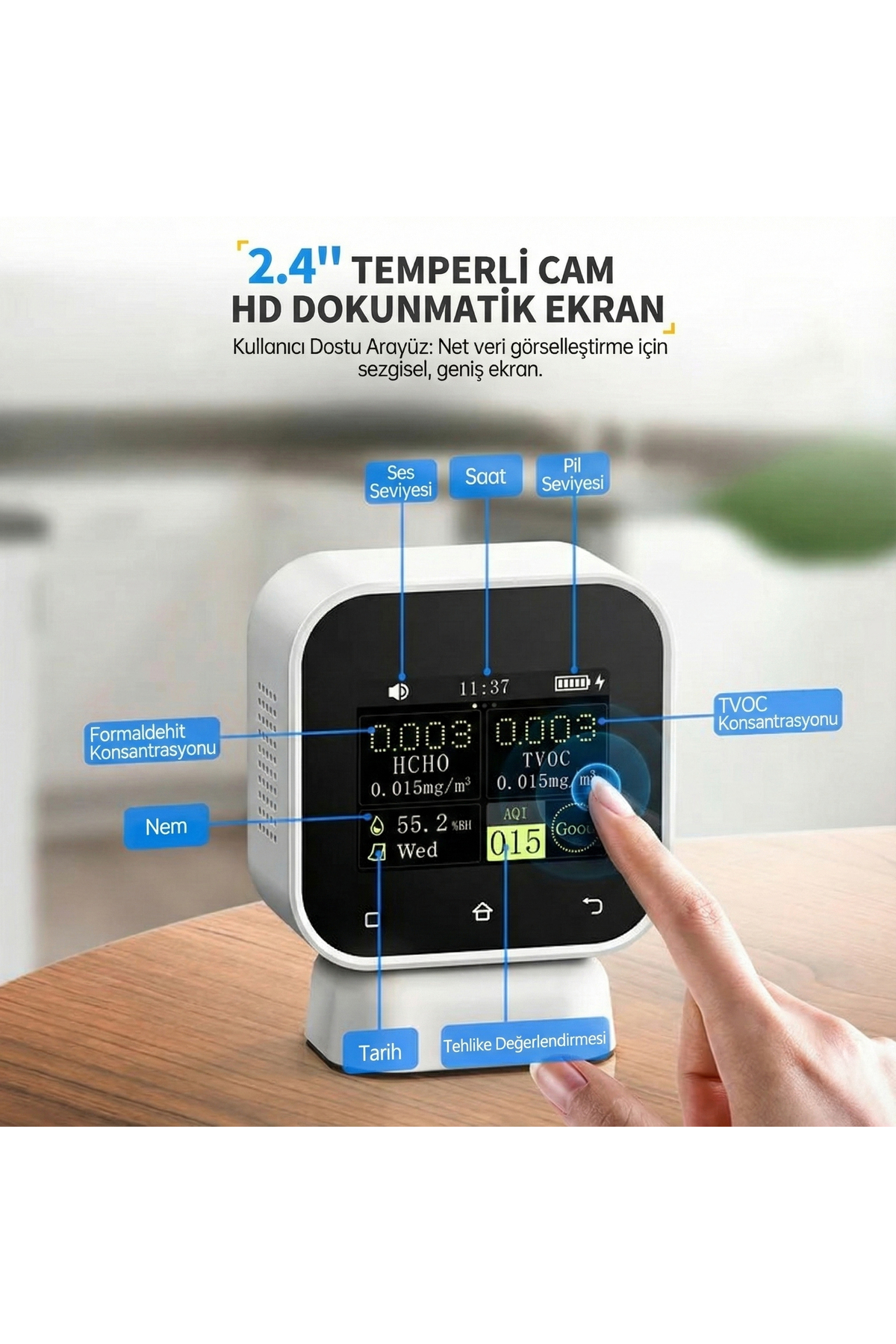

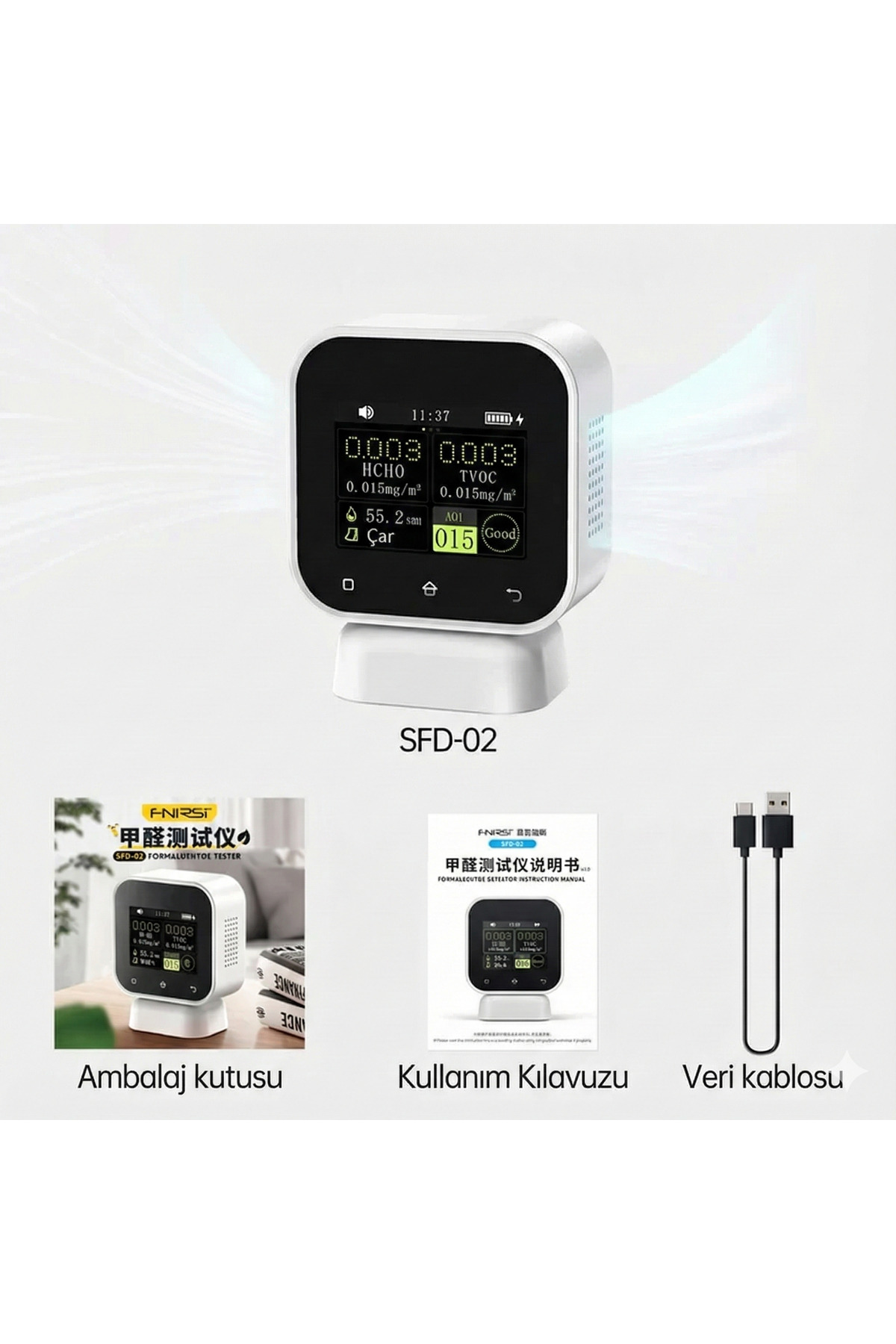

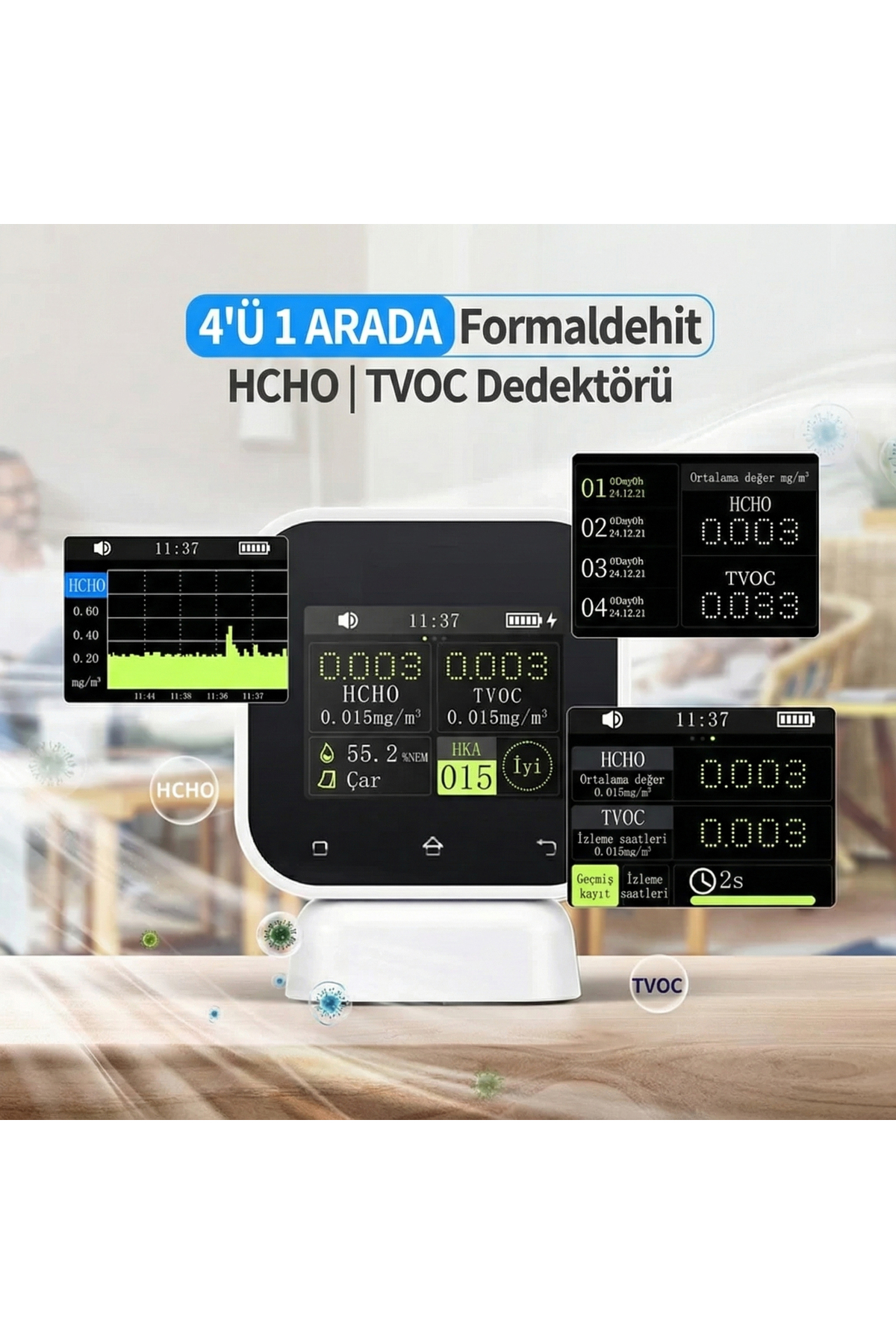

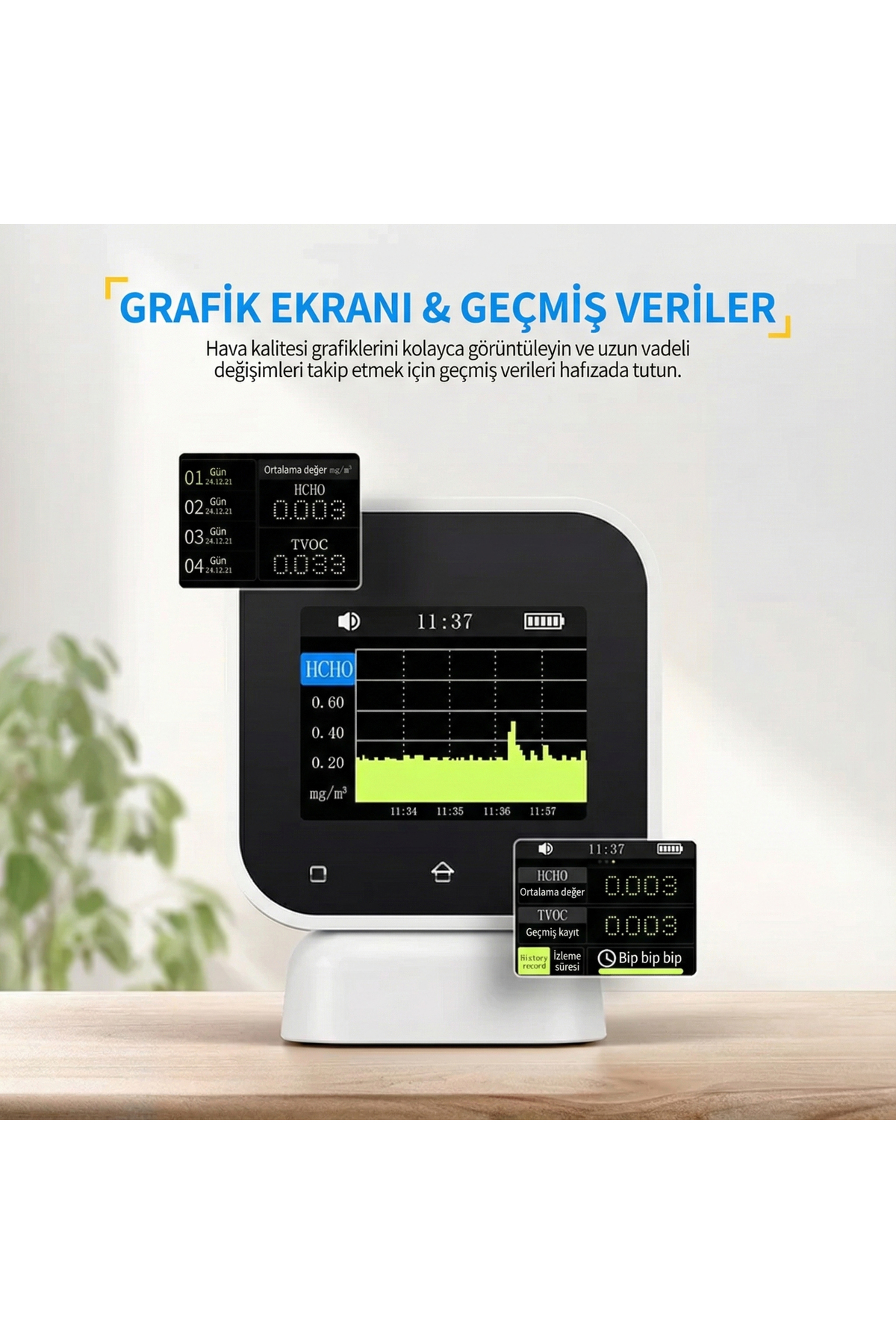

a 2.4-inch tempered glass touch HD color display with adjustable backlight brightness. Power via TYPE-C (5V/2A), 1000 mAh battery, approximate dimensions 75x45x95 mm and bare weight 193 g. Interface languages are Chinese and English. Functions include real-time monitoring, historical data recording and curves, spatial averaging, formaldehyde removal calculator, and customizable audible/visual alarm thresholds. Supplier SKU VLTSTK0050. Package includes the device, packing box, user manual and data cable. Power button is on the rear; navigation and settings via the touchscreen interface.
